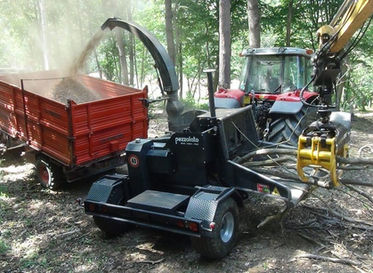

PTH 30.70
The basic model of the range, with sturdy structure of Pezzolato chippers, guaranteeing reliability and excellent performance.
The machine has been designed for ease of use by the operator and to reduce maintenance costs to a minimum. The main wearing parts are, in fact, specially designed for easy replacement, as well as having a low cost.
The chipper can be driven by tractor's PTO or by autonomous diesel engine.
Thank to the large hopper, to a large upper roller and to a lower roller that helps to pull the material inside the chipping apparatus, the machine can be fed either manually or with the aid of mechanical means. For manual feeding the chipper is equipped with a sturdy safety bar that keeps the operator safe during use.
The cutting system with closed drum and calibration grid that is interchangeable according to requirements, result in uniform and even wood chips suitable for domestic-use boilers.
The discharge fan has a wide diameter so wood chips can be discharged easily through the discharge pipe, which is equipped with an adjustable deflector at the end.
DOWNLOAD BROCHURE
Capacity
15 in
38.10 cm
Opening
17.25 in x 18.63 in
43.82 cm x 47.31 cm
Width
81 in
205.74 cm
Height
98 in
248.92 cm
Length (Open)
210 in
533.40 cm
Weight
6800 lbs
3401.94 kg
Feed Rate
120 ft/min
Fuel Tank
25 gl
94.63 l
Hydraulic Tank
12 gl
45.42 l
*Machine weights, feed rates, and other specifications are approximate and will vary depending on options selected.
All Specifications are subject to change.
