TREE SHEAR
“BIG INCH” – BI100

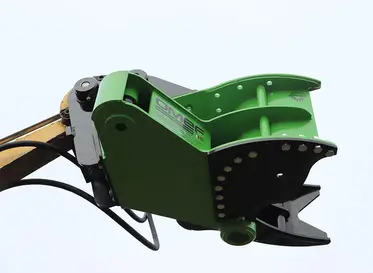

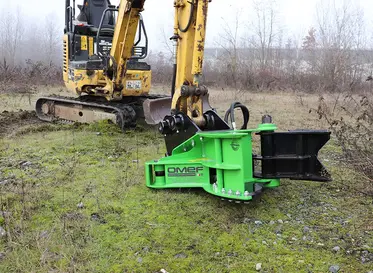

Robust and versatile tree-shear, suitable for small breakdowns. It is an attachment for tractor, cranes, mini loaders, mini diggers, telescopic handlers and excavator from 1.5 up to 3 tons. The high performance hydraulic cylinder operates the grab allowing the trunk cut and its contemporary holding. It reduces the movements of the operating machine and speeds up the consequent loading, chipping and shredding phases.
DOWNLOAD BROCHURE
Excavator class weight
Tractor power
1.5 – 3 tons > 100HP
Attachment weight
140 Kg
Min. cut diameter
40 mm
Max. cut diameter
150 mm
Oil pressure
180 – 200 bar (min-max)
Hydraulic flow
25 – 60 l/min (min-max)
Width
800 mm
Length
775 mm
Height
420 mm
