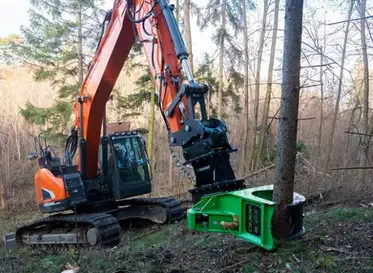

TREE SHEAR
“BIG INCH” – BI400

Big unit, like the performance that it guarantees: cylinder with 70 t of force and cutting capacity over 400 mm diameter; BI400 fits to machines with operating weight from 14 to 24 t.

DOWNLOAD BROCHURE

FEATURES

Excavator class weight

14 – 24 tons

Attachment weight

1682 lbs / 845 Kg

Min. cut diameter

5" / 120 mm

Max. cut diameter

400 mm / 450 mm - 16" / 18"

Oil pressure

250 – 350 bar | 3625-5075 psi (min-max)

Hydraulic flow

80 – 150 l/min | 21-40 gal/min (min-max)

Width

58" / 1452 mm

Length

60" / 1500 mm

Height

25" / 654 mm
